ENGINEERING

STAIR LIFT

Status:
Produced for:
Team members:
Completed as of 2013
2nd-year project, Introduction to Design (MCG 2101)
Chris Crane

The goal of this project was to design an automatic stair lift capable of safely transporting a person between the floors of a house. The final stair lift design is powered by an onboard battery and is driven by a right angle worm drive motor which supplies torque to a pinion gear connected to the rail. The chair travels along a single rail by means of three pairs of rubber wheels which are designed to negotiate vertical and horizontal curves in the rail.

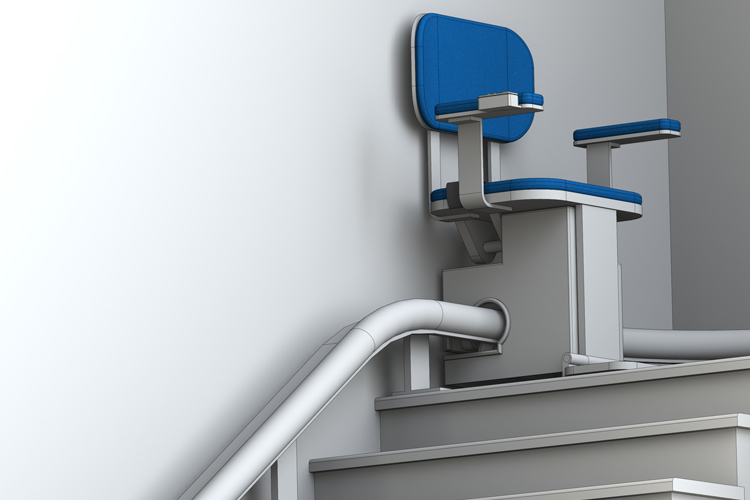

Animation showing the stair lift system negotiating a quarter turn staircase.
BLUE: onboard battery

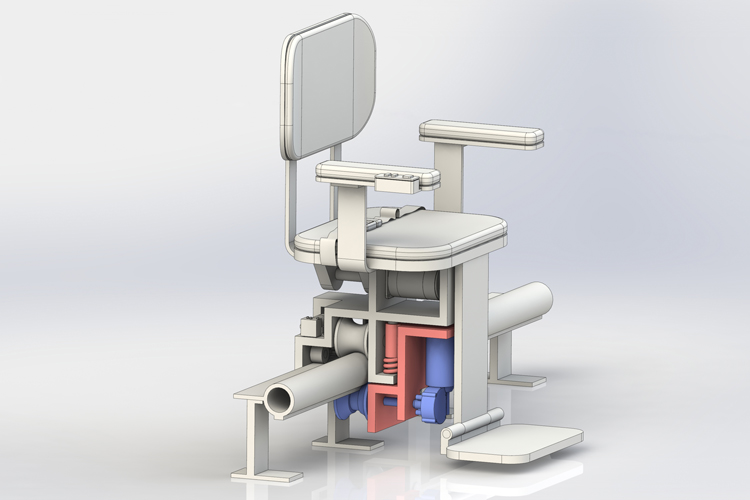

BLUE: drivetrain, RED: suspension frame
BLUE: load-bearing rubber wheel, RED: stabilising rubber wheels

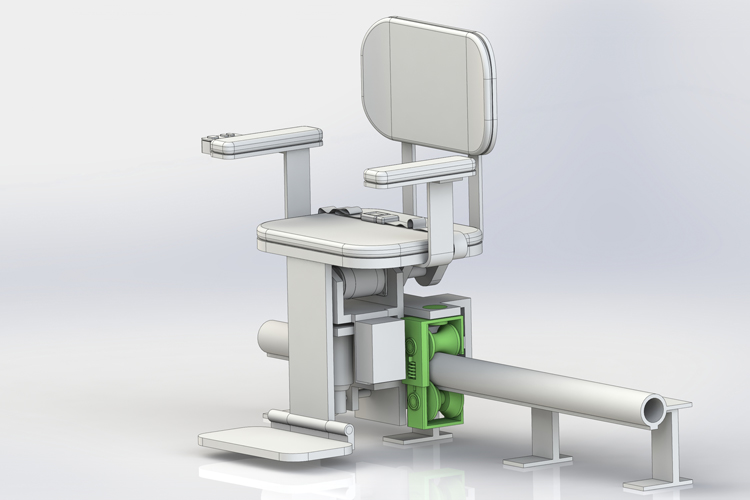

GREEN: rotating rubber guide wheels

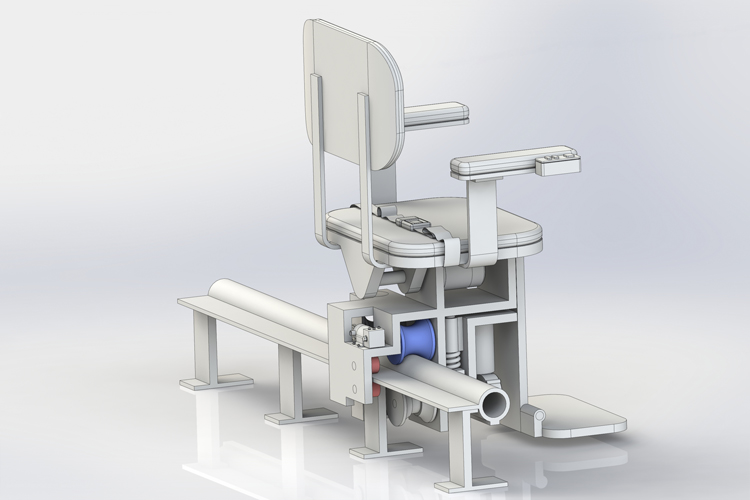

BLUE: servo motor

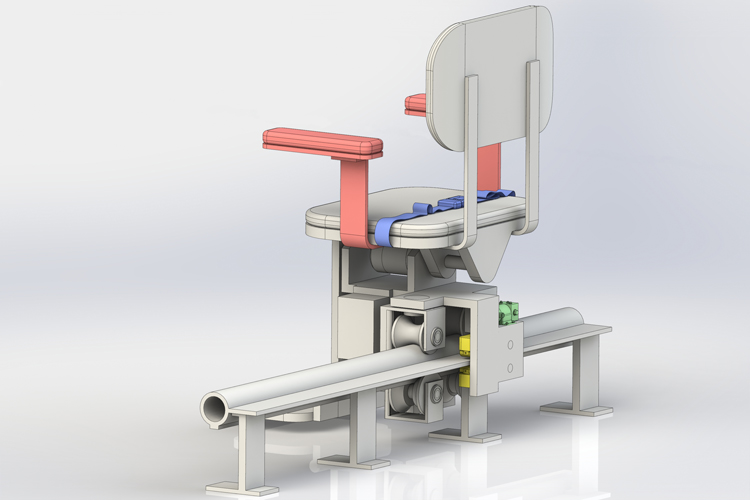

RED: arm rests, BLUE: seat belt, GREEN+YELLOW: hydraulic emergency brake system

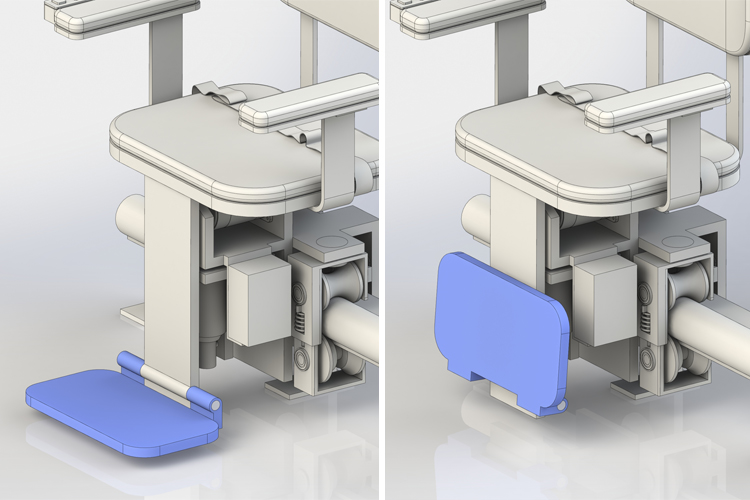

BLUE: folding foot rest

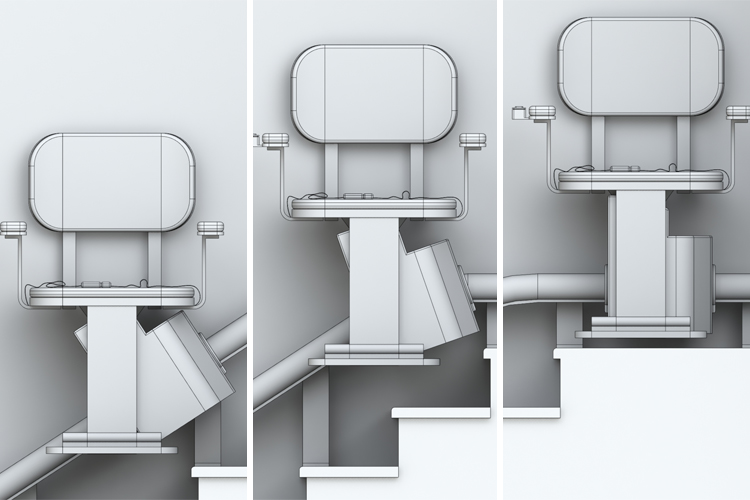

Motion of stair lift along rail
